2009年4月6日 イタリア中部の地震
━━━━━━━━━━━━━━━━━━━━━━━━

1.地震について (Earthquake Information)

この地震は、イタリア中部の町、ラクイアの近くで発生した内陸地震である。震源の深さは8.8kmと浅く、正断層型の地震であった。

----------------------------------------------------
   2009/04/06,01:32:39 42.334 13.334 8.8 6.30
----------------------------------------------------
Table1. Earthquake information. Origin time, Epicentral latitude, longitude, depth, and JMA magnitude from the left.(ref. USGS source mechanism)

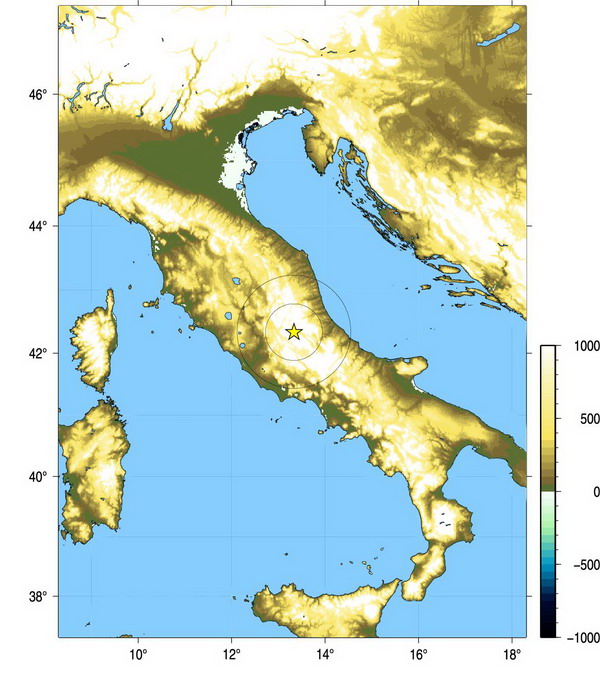

Fig.1. Event location.



2.観測点分布 (Station Distribution)


震源周りの2つの円は、震源から半径50km・100kmのエリアを示す。震源から50km以内に15点の波形記録が計測されている。

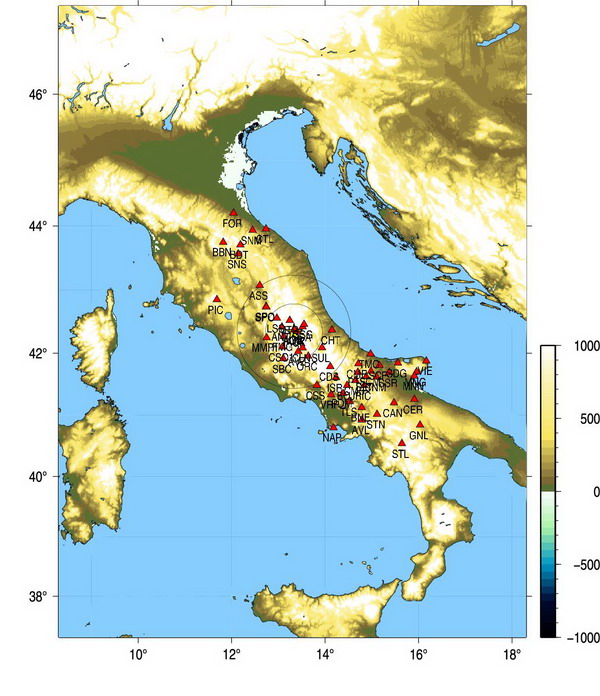

Fig.2. Station Distribution.



3.観測記録 (Earthquake Early Warning Report)

イタリアの国防省のウェブサイトでが本震の地震動記録が公開されている。
http://www.protezionecivile.it/minisite/index.php?dir_pk=1046&cms_pk=15425
震央から5kmと非常に近い範囲で4つの記録があり、震度6弱を記録したのが2地点、震度5強を記録したのが2地点である。
観測波形は短周期が卓越しているが、震源近傍の波形ではディレクティビティパルスも見られる。

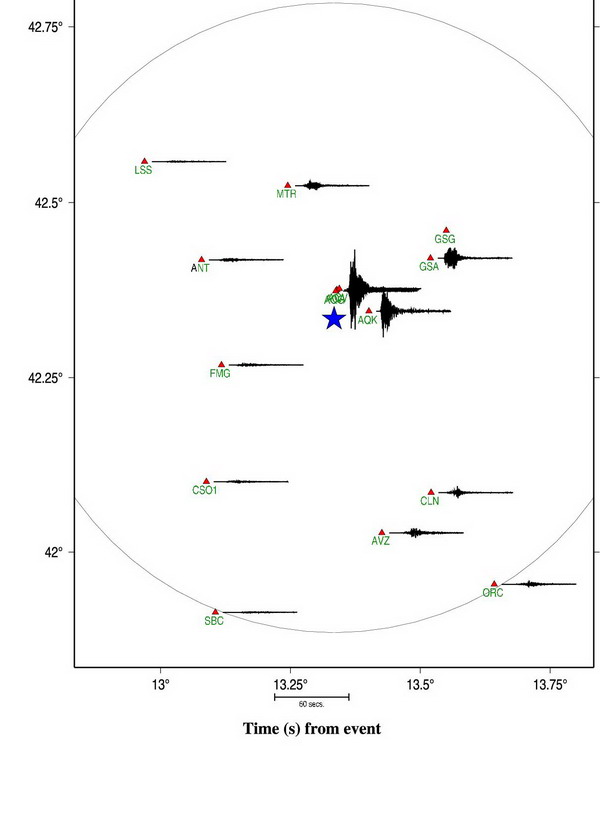

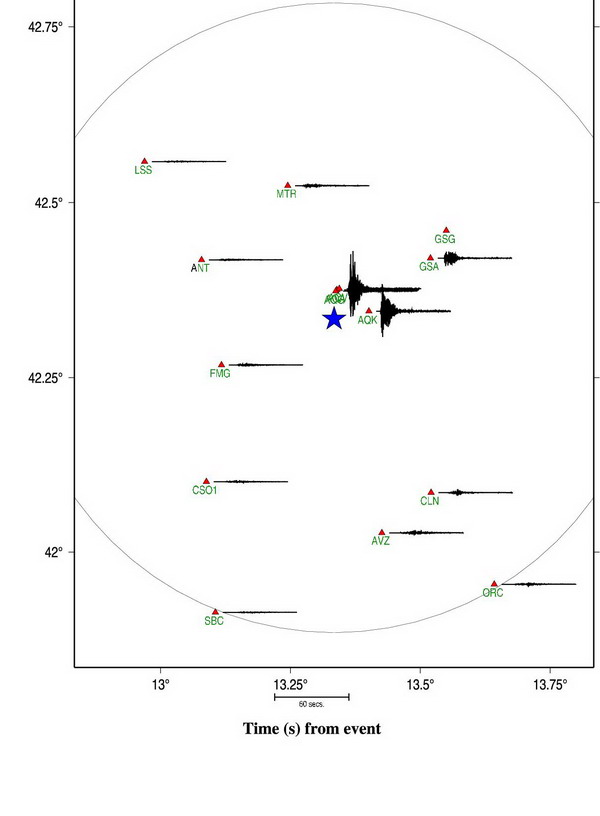

Fig.3. Acceleration waveforms (EW, NS, UD component from left).

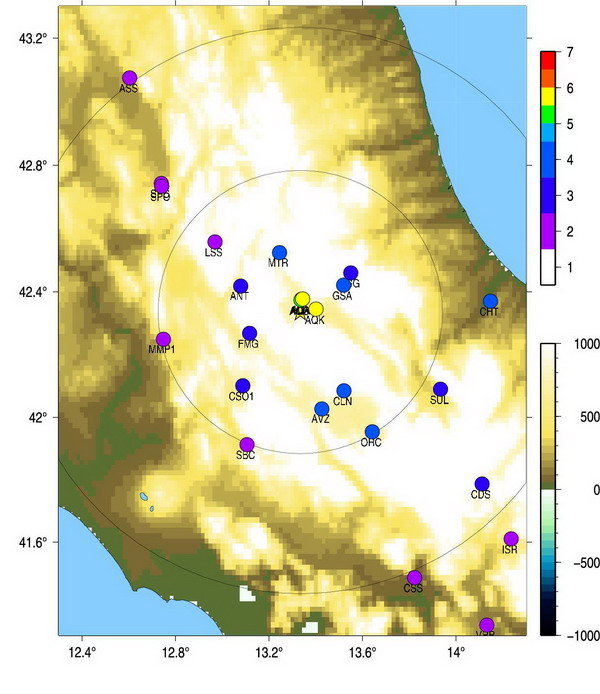

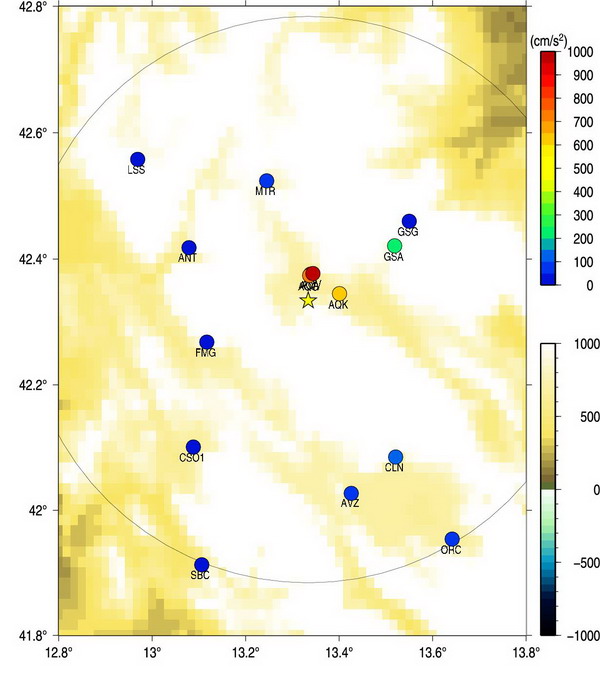

Fig.4. JMA seismic intensity (left) and peak ground acceleration (right).



4.解析結果 (Analytical Result)

地震動のP波の初期3秒の周期を使ったマグニチュード推定の結果を以下に示す。 最も近い10個の観測点の中央値は1.95秒であり、マグニチュードの割には初期破壊が大きい印象を持つ。
-------------------------------------------------------
   AQG.IT.z.sac 13.337 42.374 1.535 3.540 4.415 6.3
   AQA.IT.z.sac 13.339 42.376 1.816 3.535 4.634 6.3
   AQV.IT.z.sac 13.344 42.377 1.683 3.540 4.853 6.3
   AQK.IT.z.sac 13.401 42.345 2.653 3.360 5.650 6.3
   GSA.IT.z.sac 13.519 42.421 2.126 4.745 18.049 6.3
   FMG.IT.z.sac 13.117 42.268 2.343 6.070 19.320 6.3
   MTR.IT.z.sac 13.245 42.524 1.574 5.980 22.349 6.3
   ANT.IT.z.sac 13.079 42.418 2.165 6.465 23.016 6.3
   CLN.IT.z.sac 13.521 42.085 1.405 7.205 31.648 6.3
   CSO1.IT.z.sac 13.088 42.101 3.960 8.055 32.903 6.3
-------------------------------------------------------
Table2. Analytical results using Tau_c method (Wu and Kanamori, 2005). Station ID, Station longitude, latitude, tauc, P-arrival time, epicentral distance(km) , and magnitude from the left.

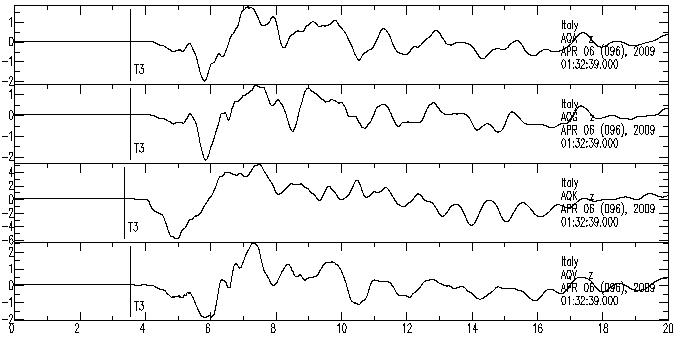

Fig.5. Displacement waveforms of the closest 4 station (unit: cm, vertical component).

Reference
Wu, Y. M. and H. Kanamori (2005). Experiment on an onsite early warning method for the Taiwan early warning system, Bull. Seism. Soc. Am., 95, 347-353.
